Automatic Paper Bag Making Machine

I'm Online Chat Now

Automatic Paper Bag Making Machine

China Automatic Paper Bag Making Machine supplier

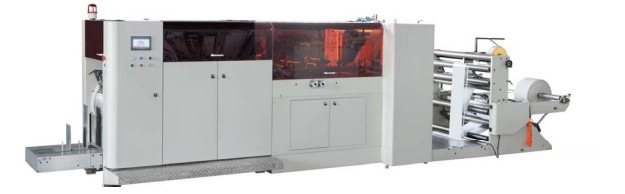

Large Image :  Automatic Paper Bag Making Machine

Product Details:

Place of Origin: WENZHOU
Brand Name: MUEN
Model Number: MSD-700

Payment & Shipping Terms:

Delivery Time: 30days
Contact Now
Detailed Product Description

Introduction:

This machine forming the paper bag in one process from roll paper, feeding, transfer, die cutting mouth shape piercings, automatic glue, frilled M above, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald’s bags.

Features:

1. Adopt touch screen and PC control system, the work condition can be shown real time.

2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.

3. Material lifting adopt pneumatic lift structure.

4. “foolproof” style automatic constant tension control system using the United Stated Bellofram precision controller. The tension will be just right from beginning to end.

5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life.

6. The machine has automatic counting system. The user can set a number to count.

7. Accurate color tracking system, color errors automatically shut down.

8. Automatic lubricating oil supply system

Technical Parameter:

Type MSD-700
Cutting Length(C) 180-720 mm
Bag Length(H) 170-710 mm
Bag Width(L) 100-350 mm
Gusset Depth(S) 0-60 mm
Standard Flap(P) 15-18 mm
Max.Speed 600 pcs/min
Paper Thickness 30-100 gsm
Paper Roll Width 220-1000 mm
Max.Roll Diameter 1200 mm
Reel Inner Diameter 76 mm
Pasted With Film YES
Coating Way Hot-melt glue spraying system,coated with cold glue
Film Thickness 0.015-0.04 mm
Film Width 50-420 mm
The Max Film Diameter 450 mm
Film Inner Diameter 76 mm
Total Power 14 kw
Weight of Machine 4800 kg
Overall Dimension(LxWxH) 6900×1800×1700 mm

Note:

Machine speeds dependent on paper & adhesive qualities, bag dimensions, operator knowledge, and general work philosophy.
