Characteristics:

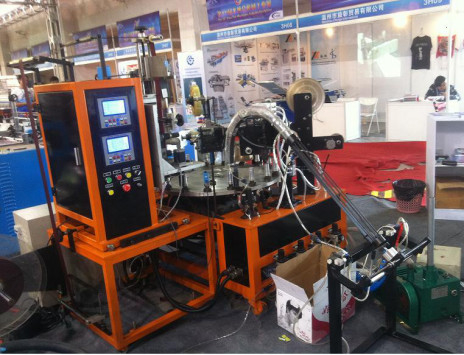

ME-C800 wine bottle capsule making machine is an ideal auxiliary equipment to making PVC capsules for wine bottle. This machine is full automatic which have many functions such as photoelectric detection, color code tracking, variable frequency speed adjustment, digital temperature control, automatic counting and overlapping. The machine has advantage of high speed, high efficiency, accurate cutting and punching, easy operation and stable running.
Machine Specification:
| 1 Output (depends on design of capsule and quality of material) |
| 1-1 Design production capacity of the machine 70PCS/min |
| 1-2 Normal production capacity of the machine 60 PCS/min |
| 2 Specification of Capsule |
| 2-1 Top diameter 27mm~33mm |
| 2-2 Bottom diameter Maximum 35mm |
| 2-3 Height 45mm ~70mm |
| 2-4 Taper 1.5°~5° |
| 3 Main Materials (PVC Thermal Shrink Film ) |
| 3-1 Diameter of coil center 3" (76mm) |
| 3-2 Outer diameter of coiled material Maximum 400mm 3-3 Width of coiled material Maximum 120mm |
| 3-4 Thickness of PVC coiled material 0.055 mm ~0.08mm |
| 4 Size of Machine: 2400mmX2400mmX1800mm |
| 5 Weight of Machine: 900KS |
| 6 Power: three-phase 380v, 3.5kw |
