WQ-1600 Non woven fabric machine

I'm Online Chat Now

WQ-1600 Non woven fabric machine

China WQ-1600 Non woven fabric machine supplier

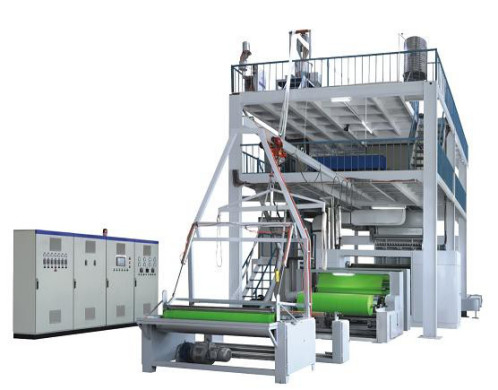

Large Image :  WQ-1600 Non woven fabric machine

Product Details:

Place of Origin: WENZHOU
Brand Name: MUEN
Model Number: WQ-1600
Contact Now
Detailed Product Description

Specification :

  1. Screw extruder(main machinery) θ130 1set
  1. length dia percentage: 1:30
  2. Maximum rotation speed: 85r/min
  3. Power: 90KW, AC inverter: 90KW
  1. Screw extruder(recycle machinery) θ105 1set
  1. length dia percentage: 1:15
  2. Maximum rotational spped: 85r/min
  3. Power :15KW, AC inverter: 15 KW
  1. High quality melting filter unit 1 set
  2. Metering pump 1 pc with sepcial design
  1. pressure of the exit: 4 Mpa
  2. Rotate speed: 5-30r/min
  3. Maximum pressure balance: 35 Mpa.
  4. Working temperature:≤330℃
  5. Cleaning temperature:≤450℃
  1. Spinneret 1 set( match spinneret board two pairs- one pair in m/c and the other pair spare)
  1. Heat conduction oil cyclic heating;
  2. Maximum temperature: 300℃
  1. Cooling and drawing system two pcs
  1. Made of alumminum
  2. Perforated of plate bending table. 60um stainless mess. Multi-ply melting.
  1. Drafting 1pc
  2. Diffusion 1 pc
  3. Lapping maahine 1 pc
  1. AC motro power 7.5KW Maximum speed: 150m/min
  2. High quality lapper belts-red or blue
  1. Therm-bonded machine 1 pc.
  1. Roller: stiletto around, heat conduction oil cyclie heating.
  2. Calendeing with lazer embossed roller.
  3. Special design-with 2 pcs chilled rolls
  4. The exactly termperature controlling is ±1℃
  5. Maximum Speed: 150m/min
  6. AC motor: Siemens-coupling system
  7. AC inverter
  1. Rolling up machine 1 pc
  1. Power: 7.5KW, AC inverter
  2. Maximum speed: 150m/min
  1. Slitting machine 1 pc
  1. AC motor, power: 7.5KW
  2. Maximum speed: 300m/min
  3. Width slitting: free controlling
  1. Air confitioner 1 pc
  1. Refreigerating capacity: 30KW
  1. Hot stove 2 pcs(48kw 1 pc, 36kw, 1 pc)
  1. Design pressure: 10 Kpa
  2. Working pressure: 3 Kpa
  3. Design temperature: 300℃
  4. The temperature precision: ±1℃
  5. Single pipe diameter X length: θ250 X 1200
  6. Power: 3 KW
  7. Designed discharge: 12.5m3/h
  1. Blower fan two pcs( 30KW)
  1. Design discharge: 14013m3/h
  2. Design pressure: 4736 pa
  3. Rotate speed: 1450r/min
  4. Power: 30kw( AC motor)
  1. Blow fan for smoke ( AC motor)
  1. Design discharge:1410-1704 m3/h
  2. Design pressure: 3507-3253 pa
  3. Rotate speed: 2900r/min
  4. Power: 3kw
  1. Controlling system for electric 1 set
  2. Air compressor: 1 set
  3. Mixer: the materials are mixed&transferred to main tanks
  4. Material stor tank 1 set
  5. Hopper 50KG
  6. Feeder 1 set./ Automatic feel from ground level.
  7. Ultrasonic cleaner ultrasonic wave cleaner 1 set
  8. Dozer for master batch 750W 2 sets
  9. Electric furnace for cleaning 1 set
  10. Steel frame:8*6*6.25M 1 set
  11. Conveyor belt: 2.05*10m 2 pieces lapper belt red
  12. Electric host/lift 1 ton/set 2 sets
  13. Piping 1 set
  14. All of AC motor and inverters: made in China famous brand
  15. Touch screen is taiwan View& PLC- Japanese Fuji
  16. Air shafts 3 pcs
  17. Running power consumption: 160 KW. Connection Power: 260KW. One ton fabric need 700KW approximate.
  18. Man power: 4-5 workers.
  19. Maxhine size: 15mX 6.5mX9.5m( Length X Width X Hight)
  20. Building size: 20m X 12m X 12m( Length X Width X Hight)
  21. Output:4-5 tons/day/24 hours.
  22. Optional device: Extra cost USD 20000
  1. Motor: Siemens brand
  2. Motor drive: Siemens brand
  3. PLC: Siemens brand
  4. Touch screen: Siemens brand
  5. Low voltage electrical parts: Siements brand
  6. Air conditioner: Carrier brand
  7. Pressure transducer: America Danisco brand



Scope of supply for buyer:

  1. Electric power supply( transformer and UPS is power is not steady, generator if power often stop)
  2. Switch board between control cabinet.
  3. Foundation for structure( supplier offers drawing)
  4. Water pool:30-40m
  5. Electronic balance: 0-200g
  6. Weighter: 0-150KG
  7. Plastic pakaging bag for fabric.
  8. Paper tube
  9. Cran 15 ton
  10. Normal tools for tongman wrench etc.
  11. MoS2 high temperature grease
  12. Silicone oil for cleaning laper belt
  13. Welding machine 2 sets
  14. Gas cutting( one set) and abrasive-wheel cutting machine( 2 sets)
  15. Machine use oil:

HYDRAULIC OIL 46#: 1BARREL 170KG/BARREL

GEAR OIL 220# :1BARREL 170KG/BARREL

HEATING OIL 320# : 4 BAREELS 170KG*4BARREL

16: LOCAL WORKER 4 PEOPLE FOR HELP / ONE MANAGER IN WORKSHOP . ONE TRANSLATOR FOR

CHINESE LANGUAGE.

17: PAINTER ( After machine commission for painting machine)
