Introduction:

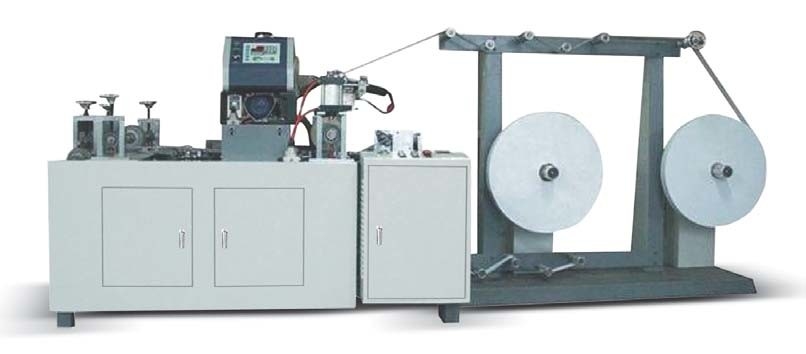

machine was developed specifically for the new generation of paper Handle Machine. This machine is sandwiched between two layers of kraft paper rope middle, after gluing, lamination, and then automatically cut into a single handle. Paper bag machine is the ideal complementary product lines.
Features:
1. use Hot-melt glue not falling.
2. easy to operate, fast.
| Type | MRP-190 |
| Paper Board Length | 190 mm |
| Paper Board Width | 35-50 mm |
| Rope Diameter | 3-5 mm |
| Max.Speed | 300 pcs/min |
| Paper Thickness | 100-120 gsm |
| Paper Roll Width | 70-100 mm |
| Max.Roll diameter | 700 mm |
| Reel inner diameter | 76 mm |
| Total Power | 4 Kw |
| Weight of Machine | 1500 kg |
| Overall Dimension(LxWxH) | 4200×1300×1500 mm |
