flute-laminating machine

China flute-laminating machine supplier

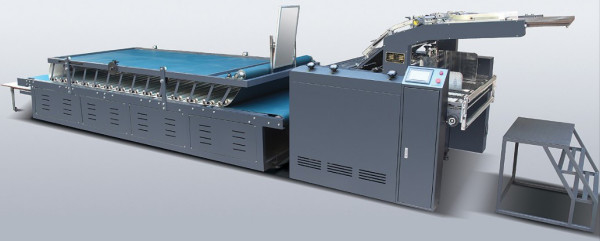

Large Image :  flute-laminating machine

Product Details:

Place of Origin: WENZHOU
Brand Name: MUEN
Model Number: NB-1100D
Contact Now
Detailed Product Description


NB-1100D with our special design, the surface paper will be operated manually and the base paper will be operated automatically. It can be applied to paste the color paper on corrugated paper. The operation is very simple, the testing is vey quick ,the maintenance is very easy .It has a high speed and high accuracy.


Machine specification:

Model NB-1100D
Max. Sheet size 1100*1100mm
Min. Sheet size 400*400mm corrugate paper; 400*310mm paper board
Base paper material

A/B/C/E/F corrugated paer, thickness ≦8mm;

paper board ≧300g/m2

Surface paper material 110-500g/m2
Speed 0-153m/min
Total power 8.7KW
Dimension 7000*1740*1800mm
Weight 3500KG


Performance of the machine:

1. Auto body paper feeding and the tissue is designed humanization by pushing in front,with the grade standards adjusted automatically,easier for feeding and more stable for fixing.

2. Controlled by PLC of the whole unit providing more stable and accurate of paper feeding.

3. Flexible front guide fixing with no body paper speeding up; besides adjusting the statuses before or after body paper and tissue are available.

4. Suitable for adhering between the card paper and A/B/C/E/Fcorrugated paper,and between card paper and card paper.

5. Equipped with auto gluing devicer, saving the quantity of glue.

6. The air draft is controlled by single motor,providing stable conveying of body paper; ingle side adjustment of the whole unit, convenient and rapid to adjust it.

7. Desiged with no scraper with the water roll cleaned automatically and the gluing action transferred independently,offering persistent gluing while machine closing down.

flute-laminating machine
