Main Technical Parameters:
Number of roller | 1-5 layer |
Tube diameter | 5-8 mm |
Tube wall-thickness | 0.3-1 mm |
Cutting Length | 100-800mm |
Winding head | 2 |
Power |
7.7KW (Main motor 3KW;Servo motor 1KW; frequency inerter 3.7KW) |
Cutter | 5 sets |
Operator | 1-2 person |
Winding speed | 0-42 m/min |
Speed control | Frequency |
Working Air Pressure | 0.6Mpa |
Power Supply | 380V/3Phase/50Hz |
Measurement | 5600*1600*1750mm |
Working Space | 11000mm * 6000mm*2000mm |
Weight | 2000kgs |
Specifications:

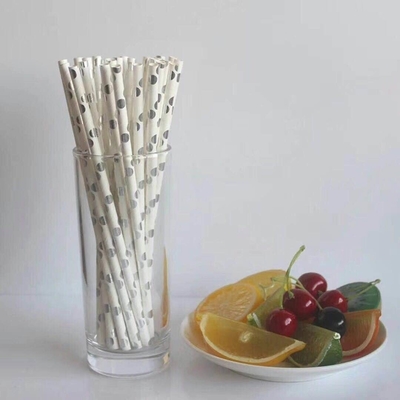

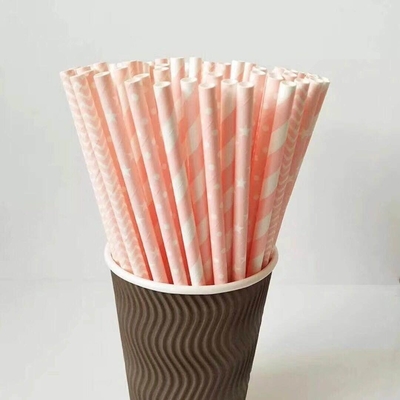

Suitable for small diameter (5-8 mm) paper tube production, such as paper straw, pen tube |

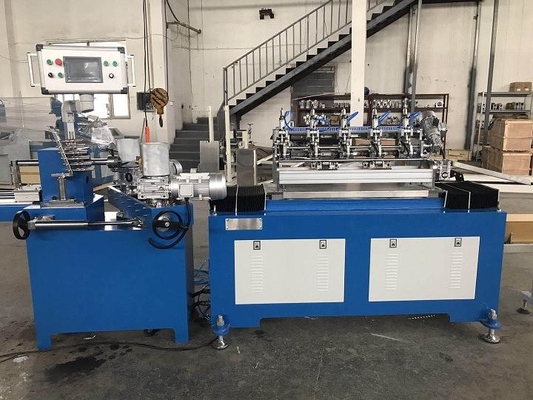

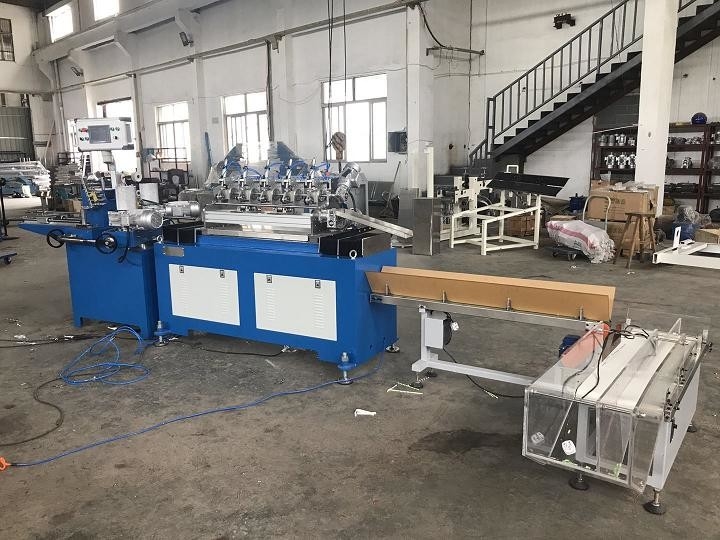

1. Machine adopts Siemens PLC control, all data can be display in the touch screen. |

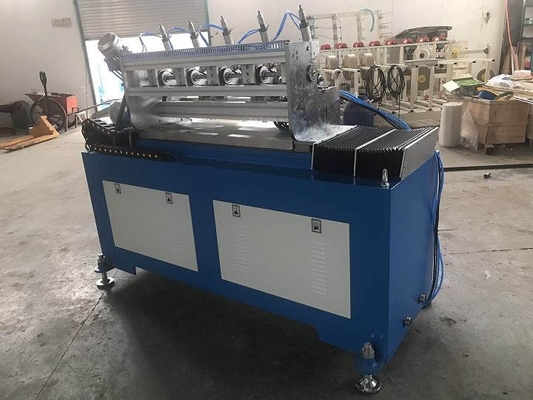

2. Numerical control servo cutter device, high precision cutting; |
3. Automatically cut, automatically fall pipe, automatically change speed and revert; |
4. Round knife cutting, incision more smooth, performance more stable; |
5. With online multi-cut blades, no need secondary cutting, save labor and time. |
6. Stainless steel gluing box, with polyurethane scraper and high carbon steel plastic knife, durable in use; |
7. Machine adopts Flange for fix the mandrel. |
8. Machine supply of lubricant automatically. |
Driving system | |
Main motor | 3 KW |
Servo motor | 1 KW (Yaskawa) |
Frequency inverter | 3.7KW |
Control system | |
PLC controller | Siemens |
Touch screen | Yes |
Fix length way | Encode |
Operating Panel | Xiankong |
Execute Components | CHNT |
Signal Components | Hugong |
Pneumatic Components | Xingchen |
Electric Components | CHNT |
Bearing | Haerbin |
Screw Rod | ABBA from Taiwan |
Slider | ABBA from Taiwan |
Equip device | |
Paper shelf type | Integral reel stand |
Auto fall tube shelf | Have |
Glue shelf | Have |
Belts | 2 |
Core mould | 1 |
Tool box | 1 |
Spare Knife | 10 pcs |
