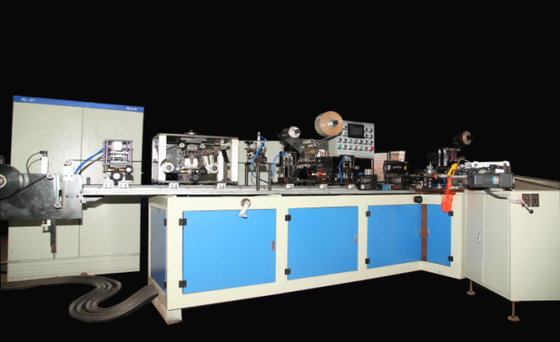

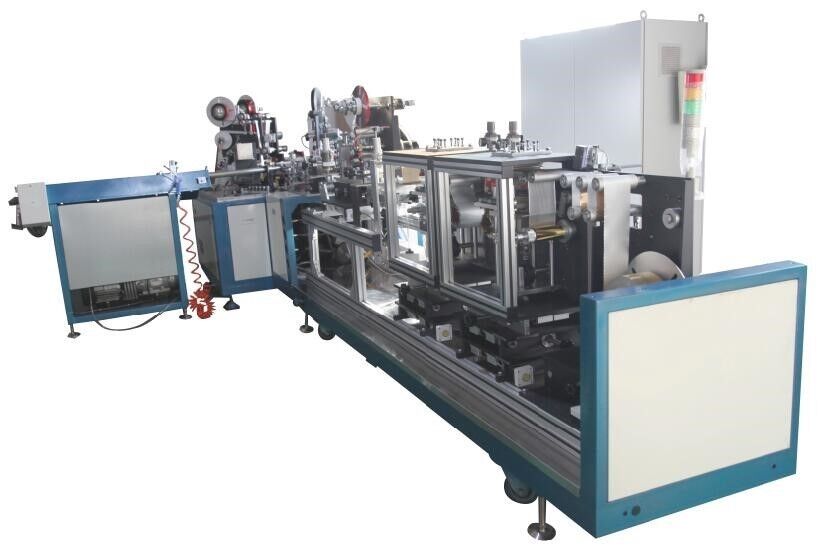

Full Automatic Wine Bottle Capsule Making Machine

Specification of the machine:

①　Mater station plate:1350mmх1250mmх30mm

②　Deputy station plate:2600mmх400mmх30mm

③　The dimension of power distribution box:500mmх1200mmх1900mm

④　The dimension of machine:4500mmх2200mmх1600mm

⑤　Machine weight: 3500KG

⑥　Machine power: 12.5KW

⑦　Electric supply:380V, 50Hz, three-phases

Standard assembly line:

①　The Fan shape cutting system on mother roll: 1 set

②　The die punching system on the top of capsule: 1 set

③　Aluminum mold to make the capsule as per the design from Customer: 1 set

④　Hot stamping on the top of capsule: 1 set

⑤　Hot stamping on the skirt of capsule: 1 set

⑥　Photoelectric positioning system on mother roll: 1 set

⑦　Photoelectric tracking system on the color code of capsule’s top: 1 set

⑧　Photoelectric cut-to-length system on the color code of mother roll: 1 set

⑨　Tear band system: 1 set

⑩　Automatic-tandem system of finished product: 1 set

Main configuration:

①　PLC control system:from AELTA, Taiwan with touch-screen display.

②　Air valve:from FESTO,Germany.

③　Air cylinder: from CAMOZZI, Italy.

④　Air heater: from LEISTER, Switzerland.

⑤　Feeding motor: from HDB, joint venture of China and Germany.

⑥　Photoelectric: from AUTONICS, Korea.

⑦　Intermittent segmentation: DEX14DT-12-120SRBW, Taiwan.

⑧　Color code sensor: YATAI, Shanghai.

⑨　Driving motor:China, 3KW.

⑩　Water-ring vacuum pump: China, 3KW.

11　Frequency conversion speed regulating system on main motor: China.

Above configuration can be regulated to meet customer’s need.

Technological process of production:

①　Feeding mother roll

②　Mother roll unwinding automatically

③　vibration-proof tension controlling on mother roll

④　Stamping on capsule’s skirt

⑤　Tracking color code

⑥　Glue spreading

⑦　Adding tear band

⑧　Cutting mother roll

⑨　Mold receive the mother roll sheet, rolling into tube

⑩　Glue line seaming(three times)

11　PVC thermoforming( or polyethylene aluminum capsule cold forming)

12　Pasting Aluminum foil or PVC on the top of Capsule

13　Self-topping

14　Stamping on top

15　Pneumatic die punching on top

16　Output finished product(counting and automatic-tandem)

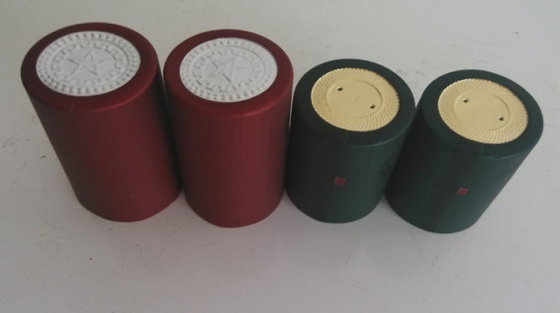

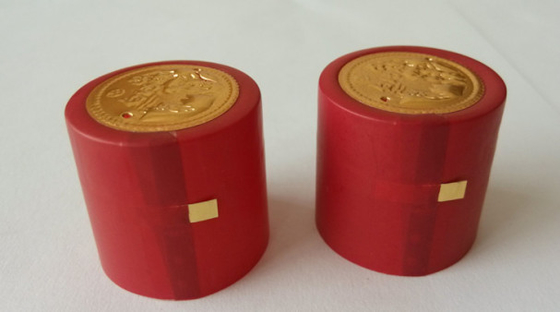

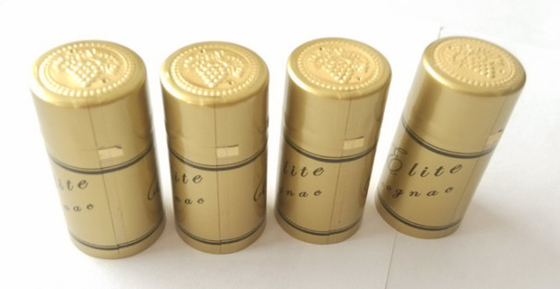

Capsule size:

①　Top diameter: φ28mm~φ34mm

②　Bottom diameter: Maximum 36mm

③　Height: 30mm~70mm

④　Taper: 1.5°~5°
